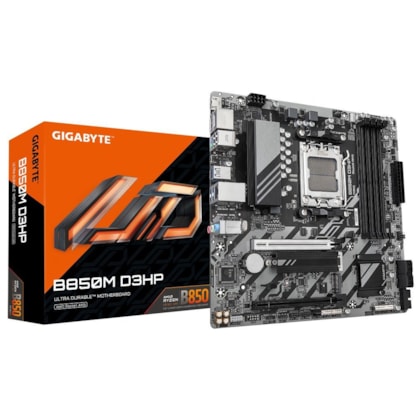

Placa Mãe Gigabyte B850m D3hp Ddr5 Am5 Matx Display Port M.2 Usb 3.2 Rev 1.0

Marca:

Gigabyte

Modelo:

B650M D3HP

CPU

AMD Socket AM5, support for:

AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset

AMD B650

Memória

Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules

4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Gráficos Onboard

Integrated Graphics Processor with AMD Radeon™ Graphics support

2x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version.

1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

Support for up to triple-display at the same time

(Graphics specifications may vary depending on CPU support.)

Áudio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Slots de Expansão

1x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

1x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Interface de Armazenamento

1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:

AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

4x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

1x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support

1x USB 3.2 Gen 1 port on the back panel

1x USB 2.0/1.1 port on the back panel

Chipset:

2x USB 3.2 Gen 1 ports on the back panel

1x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

2x USB 3.2 Gen 1 ports available through the internal USB header

5x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)

Conectores Internos I/O

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x CPU fan header

2x system fan headers

2x addressable LED strip headers

1x RGB LED strip header

2x M.2 Socket 3 connectors

4x SATA 6Gb/s connectors

1x front panel header

1x front panel audio header

1x USB Type-C® header, with USB 3.2 Gen 1 support

1x USB 3.2 Gen 1 header

2x USB 2.0/1.1 headers

1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1x Q-Flash Plus button

1x reset jumper

1x Clear CMOS jumper

Conectores Painel Traseiro

1x PS/2 keyboard/mouse port

1x USB Type-C® port, with USB 3.2 Gen 1 support

3x USB 3.2 Gen 1 ports

2x USB 2.0/1.1 ports

1x HDMI port

2x DisplayPorts

1x RJ-45 port

3x audio jacks

Controlador I/O

iTE® I/O Controller Chip

Monitoramento H/W

Voltage detection

Temperature detection

Fan speed detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Características Exclusivas

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Pacote de Software

Norton® Internet Security (OEM version)

LAN bandwidth management software

Sistema Operacional

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm
